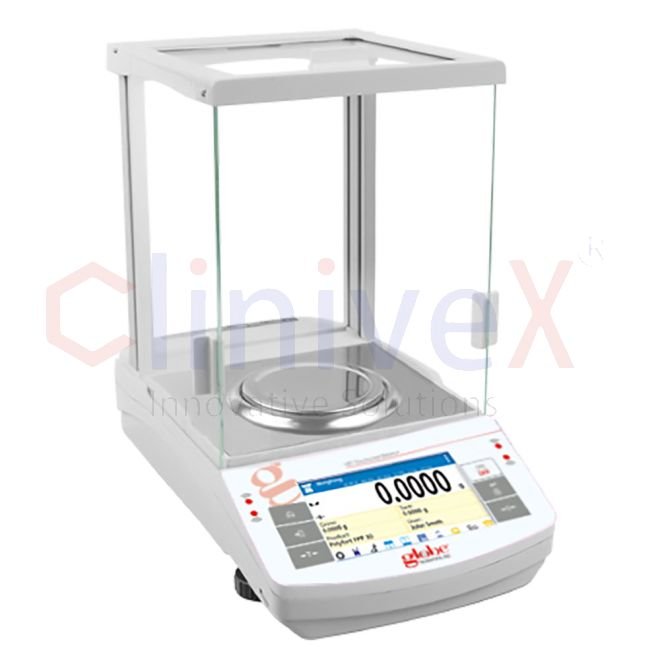

main product photo

Balance, Analytical, Touchscreen, 160g x 0.1mg, External Calibration, 100-240V, 50-60Hz

In stock
Balance, Analytical, Touchscreen

  • The GBT-Series of Analytical and Precision Balances offer a wide range of options, making them an essential piece of equipment in any laboratory.

  • These balances have an advanced color touch display for ease of use, and include touch-free operation capability with two infrared sensors. Intelligent design features like a customizable home screen, and extensive onboard data storage increase the convenience and functionality of these units.

  • With RS232, USB-A, USB-B, and Ethernet connectivity, GBT-Series balances are well suited to data export, and process integration.

  • The GBT-Series is available with internal or external calibration types. The internal automatic calibration and adjustment offers three internal calibration options: Temperature-activated, time- activated or manually activated calibration. The external calibration type prompts the user for the pre-defined mass to calibrate the mechanism, ensuring precise and repeatable measurements.

  • All GBT-Series balance combine state of the art features with premium build quality and reliability, all backed 5-Year Guarantee

More Information
SKU GBT-164

  • Application Modes: Optimize the performance of your balance with one of 11 application modes: Basic Weighing, Piece Counting, Check Weighing, Dosing, Deviations, Density Determination (Solids & Liquids), Animal Weigh, Statistics, Totalizing (Formulation), and Peak Hold.

  • Premium Build Quality: The housing is designed to endure the most challenging environments from teaching labs to industrial use.

  • Database Storage and Onboard Processing: Standard on the GBT-Series balances. Store Users, Products, Weighings, Packaging, Formulations and Customers in memory. Detailed reporting includes Balance ID, User, Date, Time, Software Version, Measurement Mode, Results, and Signature Line, allowing for data stewardship and complete GLP documentation.

  • Touch-Screen Display: Intuitive interface navigation. Easily click, scroll, and tap through menus and submenus. Infrared sensors also allow for touchless operation, when cleanliness and compliance is at a premium.

  • User-Friendly Draft Shield: Standard on semi-micro and analytical models. The internal dimensions (16.0 x 16.8 x 23.0 cm (6.25 x 6.6 x 9”)). and three sliding doors allow for easy access to the chamber. The draft shield doors, stainless steel weigh pan, and draft chamber floor are easy to remove for cleaning. A short, removable draft shield comes standard on the 0.001g readability GBTSeries precision balances.

  • 5-Year Replacement Guarantee: Long term support enables you to purchase with confidence.

  • Note: All instruments and names of manufacturers mentioned herein are the trademarks of their respective companies and are used for reference purposes only. Clinivex Inc. expressly disclaims any affiliation to them

Advanced Touch Display Analytical & Precison Balances
Item #
Item # (with Cal. Cert.)*		 GBT-64
GBT-64-CT		 GBT-164
GBT-164-CT		 GBT-224
GBT-224-CT		 GBT-314
GBT-614-CT		 GBT-363
GBT-363-CT		 GBT-603
GBT-603-CT		 GBT-1003
GBT-1003-CT
Maximum Capacity 62 g 160 g 220 g 310 g 630 g 600 g 1000 g
Readability 0.1 mg 0.1 mg 0.1 mg 0.1 mg 0.001 g 0.001 g 0.001 g
Linearity +/- 0.2 mg +/- 0.2 mg +/- 0.2 mg +/- 0.2 mg +/- 0.002 g +/- 0.003 g +/- 0.003 g
Repeatability 0.1 mg 0.1 mg 0.1 mg 0.15 mg 0.001 g 0.0015 g 0.0015 g
Calibration Type External
Stabilization Time 3 sec 2 sec 2 sec 2.5 sec 2 sec 2 sec 2 sec
Pan Size ø 90 mm ø 100 mm ø 100 mm ø 100 mm 128 x 128 mm
Device Dimensions 351 x 205.5 x 338 mm 333 x 206 x 100 mm 333 x 206 x 107 mm
Ports RS232, 2 x USB-A, USB-B, Ethernet 2 x RS232, USB-A, USB-B, Ethernet





Advanced Touch Display Analytical & Precison Balances
Item #
Item # (with Cal. Cert.)*		 GBT-2002
GBT-2002-CT		 GBT-4502
GBT-4502-CT		 GBT-6002
GBT-6002-CT		 GBT-6001
GBT-6001-CT		 GBT-10001
GBT-10001-CT		 GBT-20001
GBT-20001-CT
Maximum Capacity 2 kg 4500 g 6000 g 6 kg 10 kg 20 kg
Readability 0.01 g 0.01 g 0.01 g 0.1 g 0.1 g 0.1 g
Linearity +/- 0.03g +/- 0.02 g +/- 0.02 g +/- 0.3 g +/- 0.3 g +/- 0.3 g
Repeatability 0.015 g 0.008 g 0.008 g 0.1 g 0.08 g 0.1 g
Calibration Type External
Stabilization Time 2 sec 1.5 sec 1.5 sec 2 sec 2 sec 2 sec
Pan Size 195 x 195 mm
Device Dimensions 333 x 206 x 107 mm
Ports 2 x RS232, USB-A, USB-B, Ethernet
