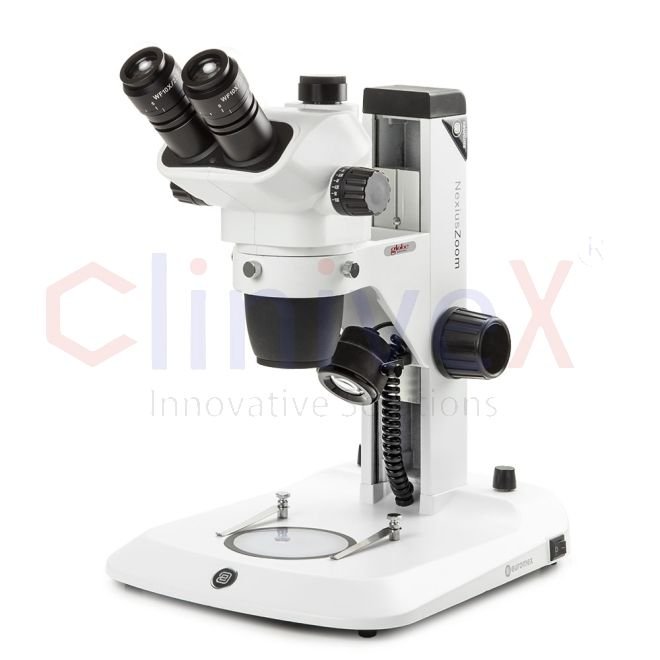

Trinocular stereo zoom microscope Nexius, Zoom Evo, 0.65x to 5.5x zoom objective

EYEPIECES

• The NexiusZoom EVO series are supplied with a pair of HWF10x/23mm eyepieces

HEAD

• Trinocular heads with 45° inclined tubes. Both eyepieces with ±5 diopter adjustments

• Interpupillary distance adjustable between 54mm and 75mm. The trinocular head is supplied with a fixed light path beamsplitter (50:50).

• The NexiusZoom EVO models are equipped with click-stops

OBJECTIVES

• The NexiusZoom EVO is supplied with a 1:8.4 plan achromatic zoom objective with 0.65x to 5.5x magnifications, a field of view from 35.4mm to 4.2mm. WD 110mm

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

MAGNIFICATIONS

Working distance and field of view with standard HWF 10x / 23 High Wide Field eyepieces of the NexiusZoom Evo:

STANDS

• Ergonomically designed pillar or rack & pinion stand with 3W incident and 3W transmitted LED illuminations (-P and -S stands)

• Ergonomically designed pillar stand with two 3W gooseneck type incident LED illuminations on each side and a 3W transmitted LED illumination (-PL stand)

All pillar and rack & pinion stands are supplied with two object clamps. Alloy metal cast, hardened coating

 ILLUMINATION

• The 3W transmitted and incident LED illuminators with internal power supply 100-240VAC operation. Both illuminators can be used simultaneously, and the light intensities can be adjusted separatel

APL (Antimicrobial Protection Layer)

• Developed with a protective microbe-resistant coating, the NexiusZoom microscope series utilizes a revolutionary paint treatment that helps restrict the growth of microorganisms, including bacteria and mold, which makes it an ideal solution for any laboratory environment

PACKAGE CONTENT

• Supplied with power cords, dust cover, a spare fuse, user manual. All packed in a polystyrene box.

  	222.ENZ1703P	222.ENZ1703PG	222.ENZ1703S
  Head	trinocular 45º inclined. 54-75mm interpupillary. +/-5mm diopter adjustment on both eyepiece tubes	trinocular 45º inclined. 54-75mm interpupillary. +/-5mm diopter adjustment on both eyepiece tubes	trinocular 45º inclined. 54-75mm interpupillary. +/-5mm diopter adjustment on both eyepiece tubes
  Eyepiece	HWF10x/23mm
  Focusing	Macro on both sides of the head holder
  Objective	0.65x – 5.5x zoom with clip stop (6.5x – 55x)
  Stage	Plain with clips, black/White and clear plates
  Illumination	3W LED incident and transmitted simultaneously	3W LED incident by two gooseneck arms and transmitted simultaneously	3W LED incident and transmitted simultaneously
  Stand	Pillar WD:110mm		Rack and pinion. WD:110mm
