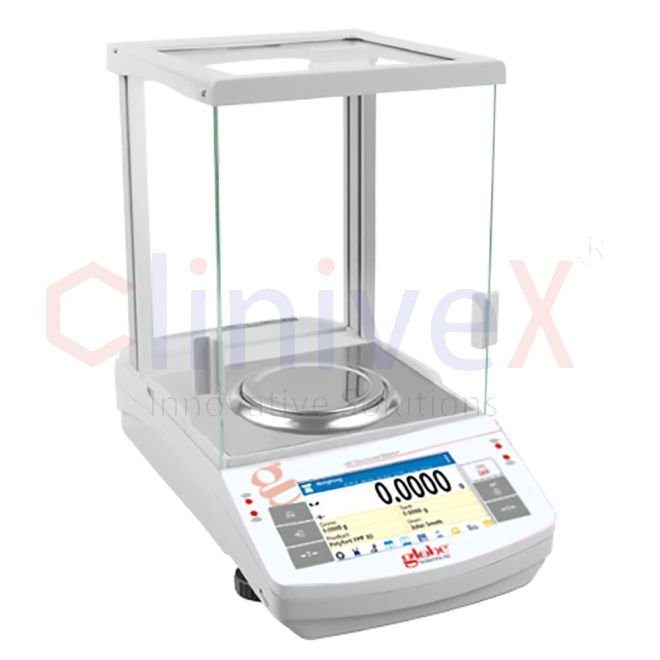

Balance, Analytical, Touchscreen, 310g x 0.1mg, Internal Calibration, 100-240V, 50-60Hz
In stock
Balance, Analytical, Touchscreen
The series of Analytical and Precision Balances offer a wide range of options, making them an essential piece of equipment in any laboratory.
These balances have an advanced color touch display for ease of use, and include touch-free operation capability with two infrared sensors. Intelligent design features like a customizable home screen, and extensive onboard data storage increase the convenience and functionality of these units.
With RS232, USB-A, USB-B, and Ethernet connectivity, GBT-Series balances are well suited to data export, and process integration.
The Series is available with internal or external calibration types. The internal automatic calibration and adjustment offers three internal calibration options: Temperature-activated, time- activated or manually activated calibration. The external calibration type prompts the user for the pre-defined mass to calibrate the mechanism, ensuring precise and repeatable measurements.
All balance combine state of the art features with premium build quality and reliability, all backed 5-Year Guarantee
| SKU | 222.GBT314C |
|---|---|
| Similar Products | GBT-314C |
Application Modes: Optimize the performance of your balance with one of 11 application modes: Basic Weighing, Piece Counting, Check Weighing, Dosing, Deviations, Density Determination (Solids & Liquids), Animal Weigh, Statistics, Totalizing (Formulation), and Peak Hold.
Premium Build Quality: The housing is designed to endure the most challenging environments from teaching labs to industrial use.
Database Storage and Onboard Processing: Standard on the GBT-Series balances. Store Users, Products, Weighings, Packaging, Formulations and Customers in memory. Detailed reporting includes Balance ID, User, Date, Time, Software Version, Measurement Mode, Results, and Signature Line, allowing for data stewardship and complete GLP documentation.
Touch-Screen Display: Intuitive interface navigation. Easily click, scroll, and tap through menus and submenus. Infrared sensors also allow for touchless operation, when cleanliness and compliance is at a premium.
User-Friendly Draft Shield: Standard on semi-micro and analytical models. The internal dimensions (16.0 x 16.8 x 23.0 cm (6.25 x 6.6 x 9”)). and three sliding doors allow for easy access to the chamber. The draft shield doors, stainless steel weigh pan, and draft chamber floor are easy to remove for cleaning. A short, removable draft shield comes standard on the 0.001g readability GBTSeries precision balances.
5-Year Replacement Guarantee: Long term support enables you to purchase with confidence.
Note: All instruments and names of manufacturers mentioned herein are the trademarks of their respective companies and are used for reference purposes only. Clinivex Inc. expressly disclaims any affiliation to them
| Advanced Touch Display Analytical & Precison Balances | ||||||||||
| Item # Item # (with Cal. Cert.)* | 222.GBT125C GBT125CCT | 222.GBT225C GBT225CCT | 222.GBT164C GBT164CCT | 222.GBT224C GBT224CCT | 222.GBT314C GBT314CCT | 222.GBT524C GBT524CCT | 222.GBT363C GBT363CCT | 222.GBT603C GBT603CCT | 222.GBT1003C GBT1003CCT | 222.GBT3003C GBT3003CCT |
| Maximum Capacity | 120 g | 82 / 220 g | 160 g | 220 g | 310 g | 520 g | 360 g | 600 g | 1000 g | 3000 g |
| Readability | 0.01 mg | 0.01 / 0.1 mg | 0.1 mg | 0.1 mg | 0.1 mg | 0.1 mg | 0.001 g | 0.001 g | 0.001 g | 0.001 g |
| Linearity | +/- 0.07 mg | +/- 0.05 / 0.2 mg | +/- 0.2 mg | +/- 0.2 mg | +/- 0.2 mg | +/- 0.4 mg | +/-0.002 g | +/-0.003 g | +/-0.003 g | +/-0.004 g |
| Repeatability | 0.04 mg | 0.1 mg | 0.1 mg | 0.1 mg | 0.15 mg | 0.4 mg | 0.001 g | 0.0015 g | 0.0015 g | 0.0015 g |
| Calibration Type | Internal | Internal | ||||||||
| Stabilization Time | 2 sec | 2 sec | 2 sec | 2 sec | 2.5 sec | 2.5 sec | 2 sec | 2 sec | 2 sec | 3 sec |
| Pan Size | ø 90 mm | ø 90 mm | ø 100 mm | ø 100 mm | ø 100 mm | ø 100 mm | 128 x 128 mm | |||
| Device Dimensions | 351 x 205.5 x 338 mm | 333 x 206 x 168 mm | ||||||||
| Ports | RS232, 2 x USB-A, USB-B, Wi-Fi, Ethernet | 2 x RS232, USB-A, USB-B, Thernet, Wi-Fi | ||||||||
| Advanced Touch Display Analytical & Precison Balances | |||||
| Item # Item #(with Cal. Cert.)* | 222.GBT2102C GBT2102CCT | 222.GBT4502C GBT4502CCT | 222.GBT6002C GBT6002CCT | 222.GBT8102C GBT8102CCT | 222.GBT10102C GBT10102CCT |
| Maximum Capacity | 2100 g | 4500 g | 6000 g | 8100 g | 10100 g |
| Readability | 0.01 g | 0.01 g | 0.01 g | 0.01 g | 0.01 g |
| Linearity | +/- 0.02 g | +/- 0.02 g | +/- 0.02 g | +/- 0.03 g | +/- 0.03 g |
| Repeatability | 0.008 g | 0.008 g | 0.008 g | 0.01 g | 0.012 g |
| Calibration Type | Internal | ||||
| Stabilization Time | 1.5 sec | ||||
| Pan Size | 195 x 195 mm | ||||
| Device Dimensions | 333 x 206 x 107 mm | ||||
| Ports | 2 x RS232, USB-A, USB-B, Ethernet, Wi-Fi | ||||
