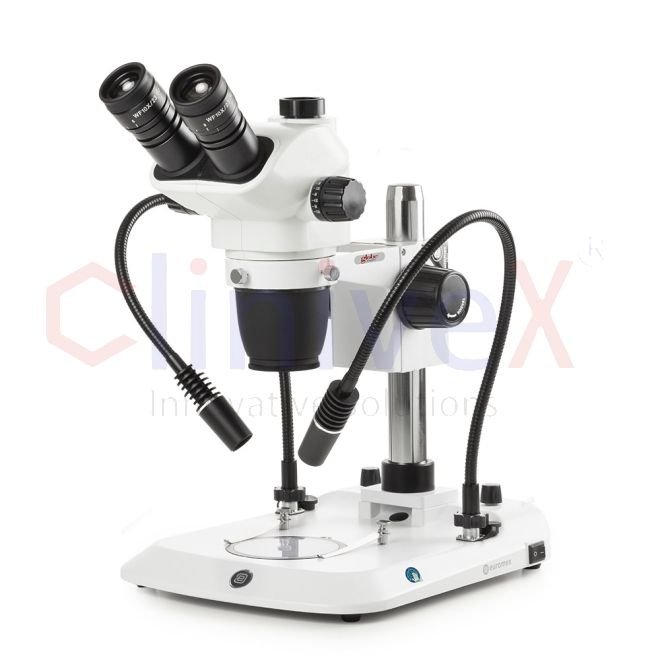

Trinocular stereo zoom microscope Nexius, Zoom Evo,.65x to 5.5x zoom obj,2 LEDs

In stock
Trinocular stereo zoom microscope Nexius

  • Experience the epitome of high-precision examination and three-dimensional imaging with the NexiusZoom EVO stereo microscopes.

  • Specifically engineered for your most demanding applications, these exceptional zoom microscopes provide unparalleled accuracy and clarity.

  • Whether analyzing material surfaces or observing and preparing biological samples, the NexiusZoom EVO is your gateway to comprehensive insights.

  • Binocular and trinocular heads with HWF 10x/22mm or HWF 10x/23mm eyepieces (EVO) for comfortable and immersive viewing experiences.

  • Double 3W LED illumination, ensuring optimal illumination for your specimens.

  • Large working distance, allowing ample space for sample manipulation and preparation.

  • Zoom ratio of 1:8.4, offering a remarkable magnification range from 6.5x to 55x. Capture the finest details and explore the microscopic world with precision.

  • Ergonomic stands designed to provide optimal comfort during extended observation sessions.

  • Configurations available with magnification capabilities up to 220x, catering to a wide range of applications.

  • CE certified, guaranteeing compliance with rigorous international standards for safety and quality.

  • Backed by a 10-year warranty, providing peace of mind and long-term support for your investment.

More Information
SKU 222.ENZ1703PG​
Similar Products ENZ-1703-PG​

EYEPIECES

  • The NexiusZoom EVO series are supplied with a pair of HWF10x/23mm eyepieces

HEAD

  • Trinocular heads with 45° inclined tubes. Both eyepieces with ±5 diopter adjustments

  • Interpupillary distance adjustable between 54mm and 75mm. The trinocular head is supplied with a fixed light path beamsplitter (50:50).

  • The NexiusZoom EVO models are equipped with click-stops

 OBJECTIVES

  • The NexiusZoom EVO is supplied with a 1:8.4 plan achromatic zoom objective with 0.65x to 5.5x magnifications, a field of view from 35.4mm to 4.2mm. WD 110mm

 All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

 MAGNIFICATIONS

Working distance and field of view with standard HWF 10x / 23 High Wide Field eyepieces of the NexiusZoom Evo:

STANDS

  • Ergonomically designed pillar or rack & pinion stand with 3W incident and 3W transmitted LED illuminations (-P and -S stands)

  • Ergonomically designed pillar stand with two 3W gooseneck type incident LED illuminations on each side and a 3W transmitted LED illumination (-PL stand)

All pillar and rack & pinion stands are supplied with two object clamps. Alloy metal cast, hardened coating

  ILLUMINATION

  • The 3W transmitted and incident LED illuminators with internal power supply 100-240VAC operation. Both illuminators can be used simultaneously, and the light intensities can be adjusted separately

 APL (Antimicrobial Protection Layer)

  • Developed with a protective microbe-resistant coating, the NexiusZoom microscope series utilizes a revolutionary paint treatment that helps restrict the growth of microorganisms, including bacteria and mold, which makes it an ideal solution for any laboratory environment

PACKAGE CONTENT
Supplied with power cords, dust cover, a spare fuse, user manual. All packed in a polystyrene box



222.ENZ1703PG

Head

trinocular 45º inclined. 54-75mm interpupillary. +/-5mm diopter adjustment on both eyepiece tubes

Eyepiece

HWF10x/23mm

Focusing

Macro on both sides of the head holder

Objective

0.65x – 5.5x zoom with clip stop (6.5x – 55x)

Stage

Plain with clips, black/White and clear plates

Illumination

3W LED incident by two gooseneck arms and transmitted simultaneously

Stand

Pillar WD:110mm
